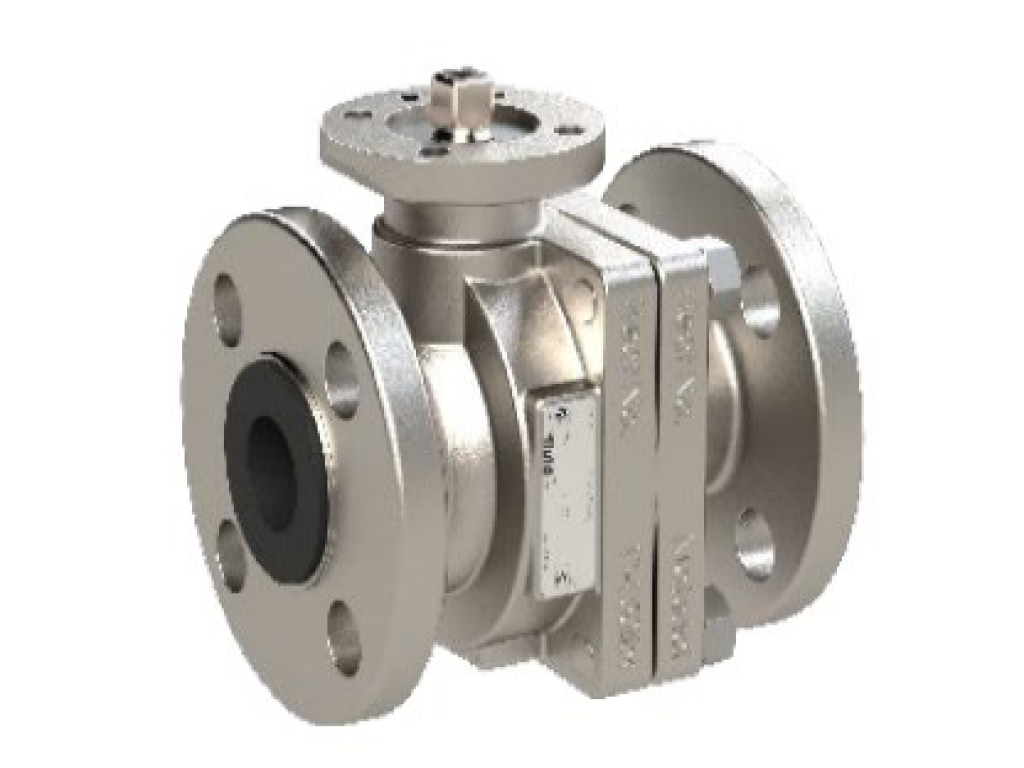

Swissfluid SBV Ball Valve
Brand:
Swissfluid
- NPS ½ˮ–10ˮ full port NPS 5ˮ–10ˮ reduced port Ideally suited for positive shut-off, flow control and throttling of corrosive or even toxic process media in either liquid or gaseous state.
- Two-piece body, metal-to-metal joint
- Anchored lining with positive locking to body
- Dynamic, maintenance-free shaft sealing acc. to TA-Luft
- One-piece ball/shaft, blow out proof, core of SS Duplex
- Rated breaking point outside of valve
- Bodies with optional flange connections PN40
- Ball options such as V-port, C-port, with pressure relief hole
- ISO top flange for direct mounting of pneum. quarter turn actuators
- Ball Valves SBV Series are available with hand lever for manual quarter turn operation as per standard or with bare shaft for easy installation of actuator units.
- The sturdy design bodies are made of cast steel 1.0619 (WCB), RAL 5005 signal-blue epoxy-coated or stainless steel 1.4408 (CF8M), with corrosion resistant linings such as PFA or PFA-AS (conductive).
- Heavy-duty, robust construction, maintenance-free
- Body halves metal-to-metal (Live-loaded)
- Bubble-tight shut-off throughout the full pressure and temperature range
- One-piece ball/shaft, PFA-encapsulated
- Zero stem leakage provided by an innovative (Live-loaded) stem sealing mechanism
- Consistent low operating torque
- Maximum flow rates at lowest pressure drops
- Integrated ISO top flange for standard actuators
- Flanges acc. to EN 1092-1, PN 16/40 or ASME B16.5, CL 150
- FDA compliant
