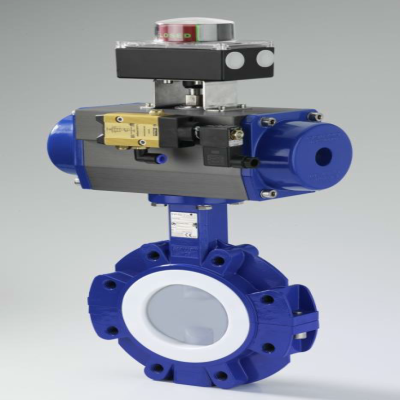

Swissfluid SBP Butterfly Valve
- 1-42" Line Size
- Large selection of different materials and trims
- Dynamic, live loaded stem seal according to TA-Luft
- Flow-optimized disc for high cv values
- Mechanically locked in disc encapsulation
- Blow-out proof one-piece disc/stem assembly
- Disc features a rated breaking-point outside the atmospheric seal
- Wide, chambered flange face
- Hysteresis free throttling characteristic
- ISO mounting flange for direct automation
Swissfluid SBV Ball Valve
- NPS ½ˮ–10ˮ full port NPS 5ˮ–10ˮ reduced port Ideally suited for positive shut-off, flow control and throttling of corrosive or even toxic process media in either liquid or gaseous state.
- Two-piece body, metal-to-metal joint
- Anchored lining with positive locking to body
- Dynamic, maintenance-free shaft sealing acc. to TA-Luft
- One-piece ball/shaft, blow out proof, core of SS Duplex
- Rated breaking point outside of valve
- Bodies with optional flange connections PN40
- Ball options such as V-port, C-port, with pressure relief hole
- ISO top flange for direct mounting of pneum. quarter turn actuators

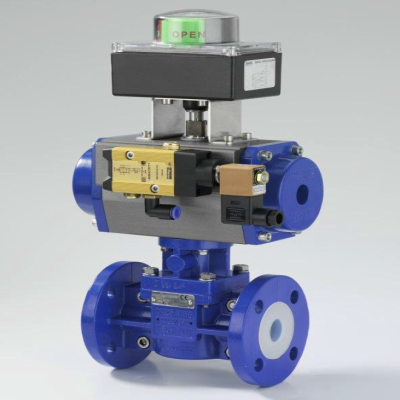

Swissfluid SCP Plug Valve
- ½" – 6" RP (red. port) SCP Cylindrical Plug Valves are ideally suited for Shut-off, Flow Control and Throttling of corrosive, abrasive or even toxic process media in either liquid or gaseous state.
- Two-piece body made of cast steel, top entry
- Dynamic, maintenance-free shaft sealing acc. to TA-Luft
- Cavity-free design, low torque, full port
- One-piece cylinder/shaft, blow out proof, core of SS Duplex
- Rated breaking point outside of valve
- Cylinder options such as V-port, with pressure relief hole
- Easy maintenance at severe service conditions
- ISO top flange for direct mounting of pneum. quarter turn actuators

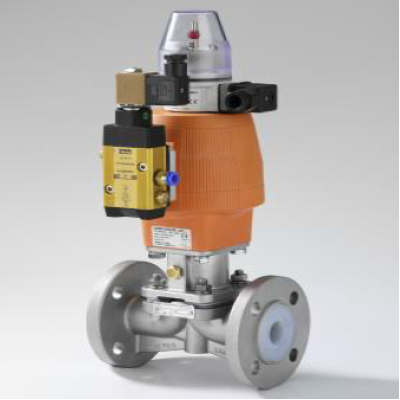

Swissfluid SDV Diaphragm Valve
- ½" – 8" SDV Diaphragm Valves are ideally suited for Shut-off, Flow Control and Throttling of corrosive process media in either liquid or gaseous state.
- Proven weir type valve body made of cast steel
- Cavity-free design
- Installation in any attitude (self-draining)
- Force limiting device protecting diaphragm
- Yellow sight indicator showing actual position of diaphragm
- Easy replacement of components on site
Swissfluid SBC Ball Check Valve
- NPS ½ˮ–6ˮ SBC Ball Check Valves are ideally suited as reliable non-return flow control for liquid process media.
- Horizontal or vertical installation
- Large safety glass plates
- Solid or hollow balls
- Quad ball guide
- For liquids, gases and steam
- Bubble tight at low differential pressure
Swissfluid SSC Swing Check Valve
- NPS 1½ˮ–24ˮ Suited for safe non-return flow control of corrosive fluidic media to be handled in process piping systems.
- Wafer-style body, two- and three-piece, DIN/ANSI combined
- Centering lugs for safe installation
- Tilted disc (to shut by gravity even when pipe isn't completely level)
- Self-retaining disc, no counter flanges needed to hold the disc in place
- Horizontal or vertical installation
- Integrated sealing lip (to seal at low differential pressures)
Swissfluid SSP Sight Glass Plastomer Lined
- NPS ½ˮ–6ˮ Sight Glasses are ideally suited as reliable flow indicators for virtually all existing process media in either liquid or even gaseous state.
- Heavy-duty, proven construction - maintenance-free
- Horizontal or vertical installation
- For liquids, gases and steam
- Large observation opening
- Standard drip ledge indicating even lowest flow
Swissfluid SST Sight Glass Stainles Steel
- ½" – 6" SST Sight Glasses are ideally suited as reliable flow indicators for virtually all existing process media in either liquid or even gaseous state.
- Heavy-duty, proven construction - maintenance-free
- Horizontal or vertical installation
- For liquids, gases and steam
- Large observation opening
- Standard drip ledge indicating even lowest flow
Swissfluid SSP-T Sight Glass Tubular
- NPS ½ˮ–6ˮ SSP-T Sight Glasses are ideally suited as reliable flow indicators for virtually all existing process media in either liquid or even gaseous state.
- 360° circumferential visibility over the entire length
- Cavity-free at horizontal and vertical installation
- Additional safety by PMMA protection tube
- Easy cleaning and maintenance
Swissfluid SST-T Sight Glass Tubular
- NPS ½ˮ–6ˮ SSP-T Sight Glasses are ideally suited as reliable flow indicators for virtually all existing process media in either liquid or even gaseous state.
- 360° circumferential visibility over the entire length
- Cavity-free at horizontal and vertical installation
- Additional safety by PMMA protection tube
- Easy cleaning and maintenance

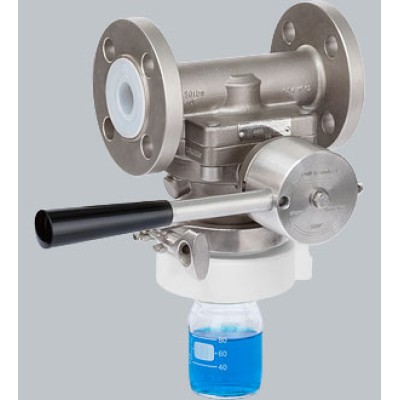

Swissfluid SSB Sampling Ball Valves
- ½” – 6”, full port for safe and representative sampling of aggressive or even toxic liquids from pressurized pipelines without any process interruptions.
- Body lined or fully made of stainless steel
- Easy and safe operation, nonpressurized sampling
- Horizontal or vertical installation
- Defined sampling volume
- Extraction of smallest samples
- Full port design, easy cleaning (piggable)
- Sampling from vacuum systems
- Interruption of system pressure through pressure lock
- Simple automation with time control
- Sampling unit for installation onto vessels

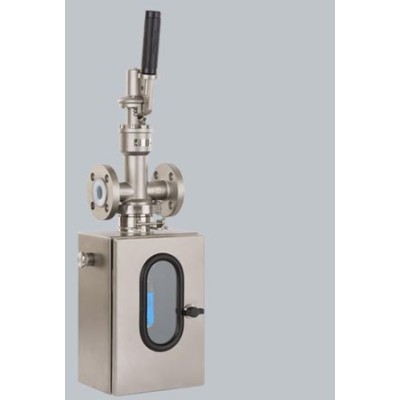

Swissfluid SIV Inline Sampling Valves
- ½" – 6" Inline Valves for safe and representative sampling of corrosive, aggressive or even toxic media from pipe- lines, pressurized or at vacuum conditions – without process interruptions.
- Bodies wafer- style and flanged version
- Easy, safe operation
- Dead-space-free design
- Installation in any given position
- Maintenance-free stuffing box or bellows seal acc. to TA-Luft
- Large outlet bore, adjustable spindle stroke
- Leakage control connection
- Adapter with quick clamp system
- Corrosion-resistant materials as well as various alloys
- Wide selection of options and accessories
- Combinable with closed sampling systems

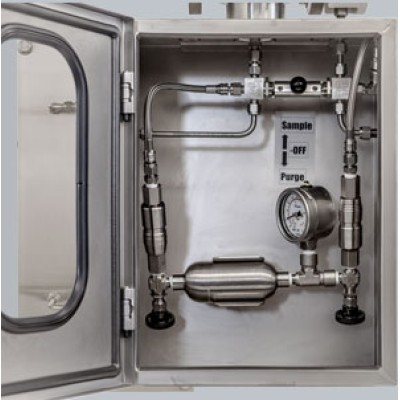

Swissfluid SSO-C Combined Sampling Systems
In combination with the SIV, inline sampling is guaranteed. In addi-
tion, the sample can be drawn over the loop (also gaseous).
The closed system allows the safe drawing of an extremely re-
presentative sample. In addition, handling and rinsing is very
simple.

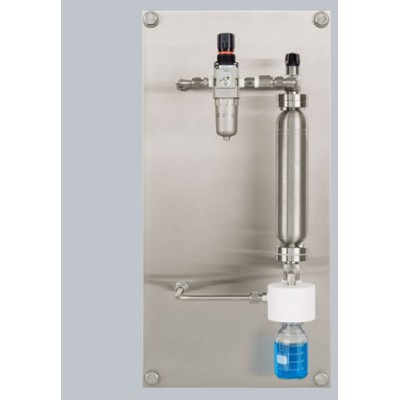

Swissfluid SSO-S Sampling Station
The sample is drawn over a needle adapter by septum.
The PP safety cabinet offers additional full protection for the
operator, who can operate the sampling station from outside.

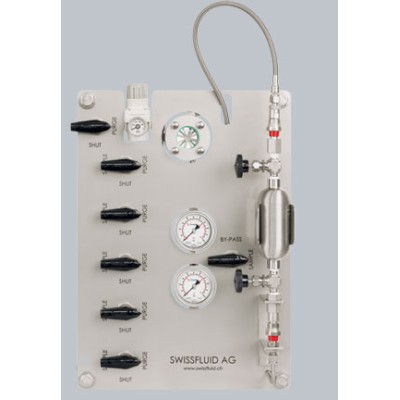

Swissfluid SSO-P Sampling Systems
Available in different variations according to customer require-
ments.
This version allows several samples to be taken from different
sampling points. The quick-closing locking mechanism allows the
sample cylinder to be removed safely and quickly. The system
can easily be switched to purge with fl ow indicator during the
whole process.
