Elite BF2400 General Purpose (Lugged) Butterfly Valve

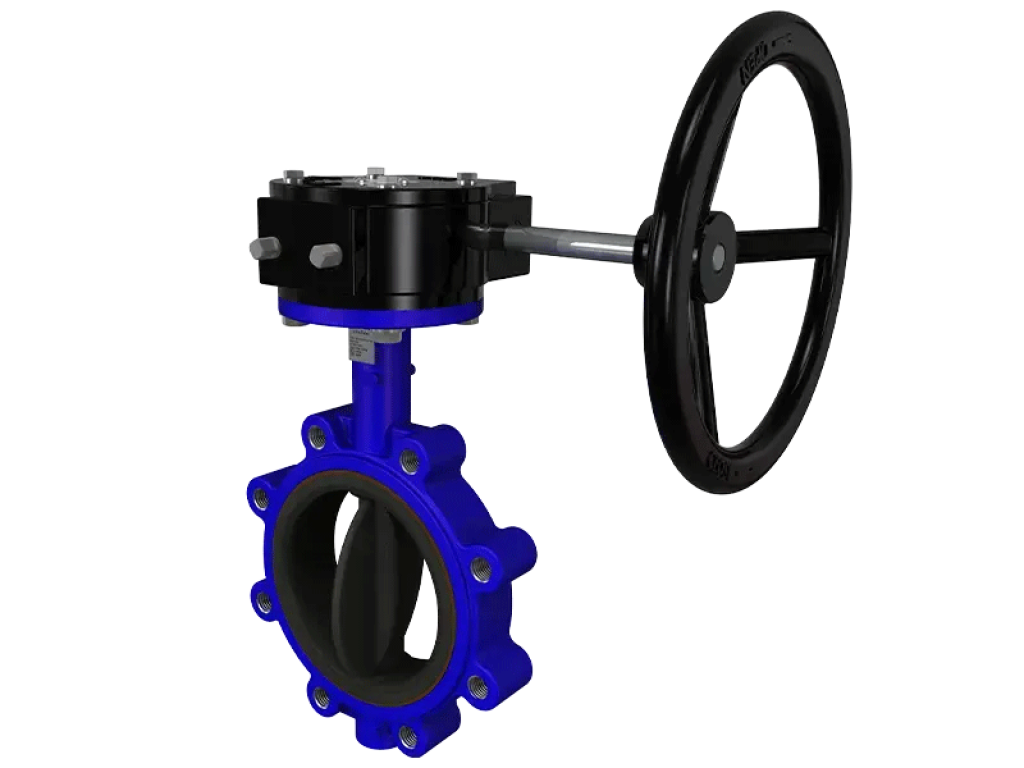

Elite BF2300 Rubber Lined (Lugged) Butterfly Valve

Brand: Elite Valve
The BF2300 (lugged) is a butterfly valve designed primarily for use in the mining, cement, and power industries. Ductile iron body EPDM seat and EPDM coated disc Lugged connection Up to 250psi 2” to 24”
- +
Download Data Sheet
Features & Benefits • EPDM coated disc resists coarse and abrasive materials • Phenolic backed, cartridge style seat ensures reliable shut-off • Ductile iron body provides added durability • ISO 5211 mounting pattern allows direct mounting of various actuation options including bevel gear, pneumatic, and electric actuators • Wafer or lugged flange styles accommodate various installation types • Hand lever with notch plate and lockout provision provides operator and maintenance safety Technical Details & Standards • Standard sizes available: 2” - 24” (larger sizes available on request) • Ductile iron body • EPDM coated 304SS disc • 416SS shaft • Phenolic backed, EPDM cartridge style seat • 250 psi standard pressure rating • ASME B16.42 Class 150 flange pattern (alternate flange patterns available on request) • Designed and manufactured according to API 609 • Tested per API 598 • Canadian CRN
