Elite HP2400 / HP3400 High Performance (Lugged) Class 150 / 300 Butterfly Valve
Elite BF2300 Rubber Lined (Lugged) Butterfly Valve

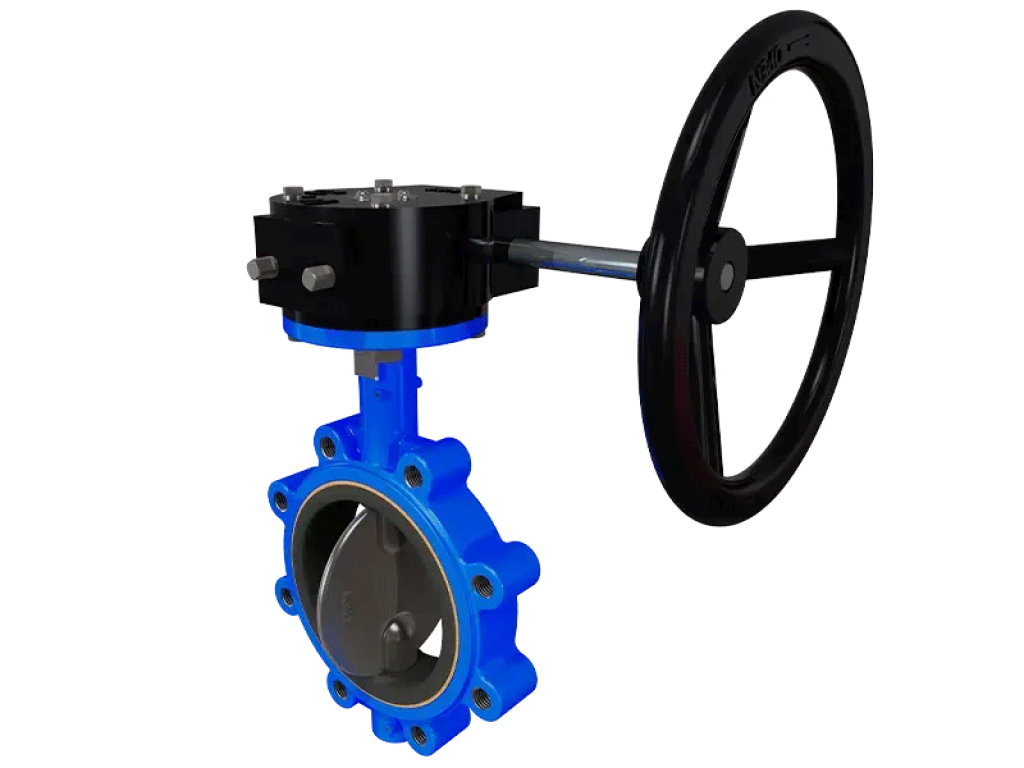

Elite BF2400 General Purpose (Lugged) Butterfly Valve

Brand: Elite Valve
The BF2400 (lugged) is a general purpose, resilient seated, butterfly valve suitable for use on a wide variety of process flow applications across all industries. Ductile iron body Resilient seat and SS disc Lugged connection Up to 250psi 2” to 24″
- +
Download Data Sheet
Features & Benefits • Stainless steel disc resists corrosion • Phenolic backed, cartridge style seat ensures reliable shut-off • Ductile iron body provides added durability • ISO 5211 mounting pattern allows direct mounting of various • Wafer or lugged flange styles accommodate various installation types • Hand lever with notch plate and lock-out provision provides operator and maintenance safety Technical Details & Standards • Standard sizes available: 2” - 24” (larger sizes available on request) • Ductile iron body • 316SS disc • 416SS shaft • Phenolic backed, EPDM cartridge style seat • -10°C to 70°C (14°F to 158°F ) standard temperature rating • 250 psi standard pressure rating • ASME B16.42 Class 150 flange pattern (alternate flange patterns available on request) • Designed and manufactured according to API 609 • Tested per API 598 • Canadian CRN
