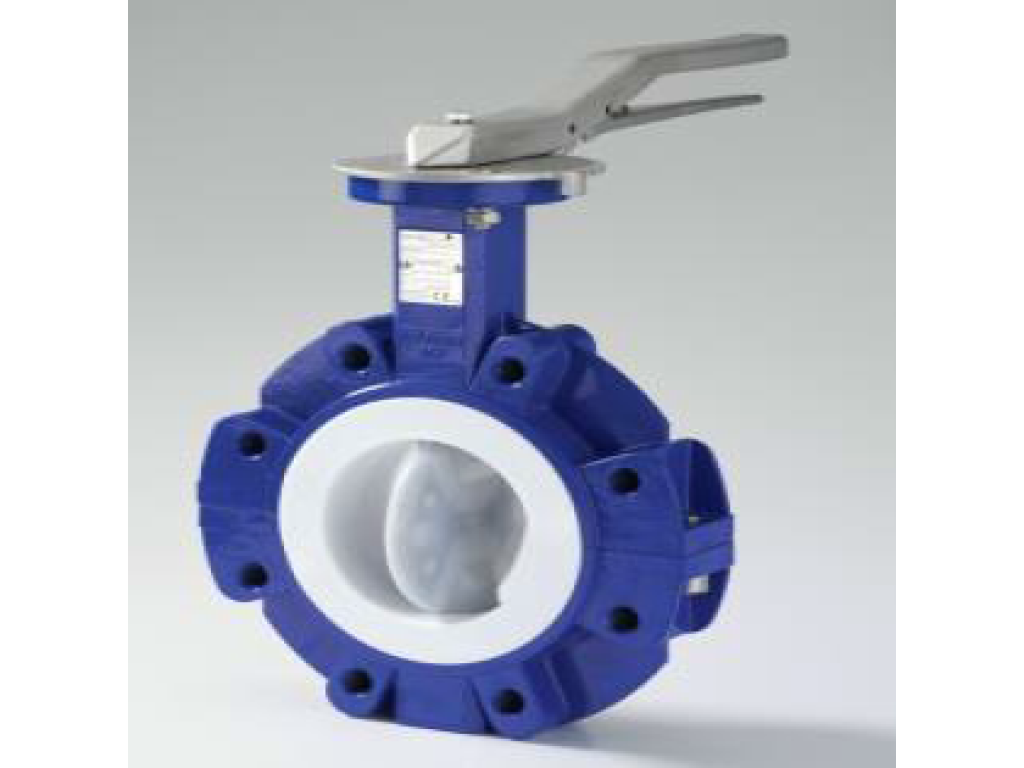

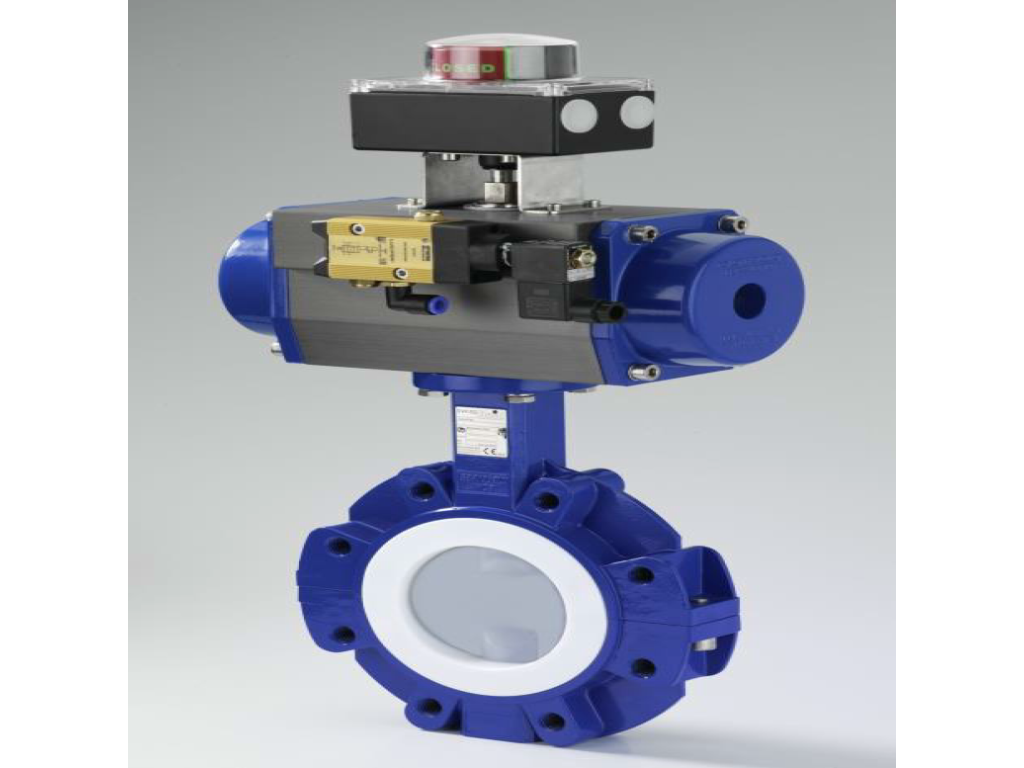

• Valves are available as wafer- or lug-style valves, with bare shaft as per standard. Valves can be delivered as complete units, i.e. with mounted-on locking handles, manual gearboxes or with quarter turn pneumatic actuators double- or single-acting.

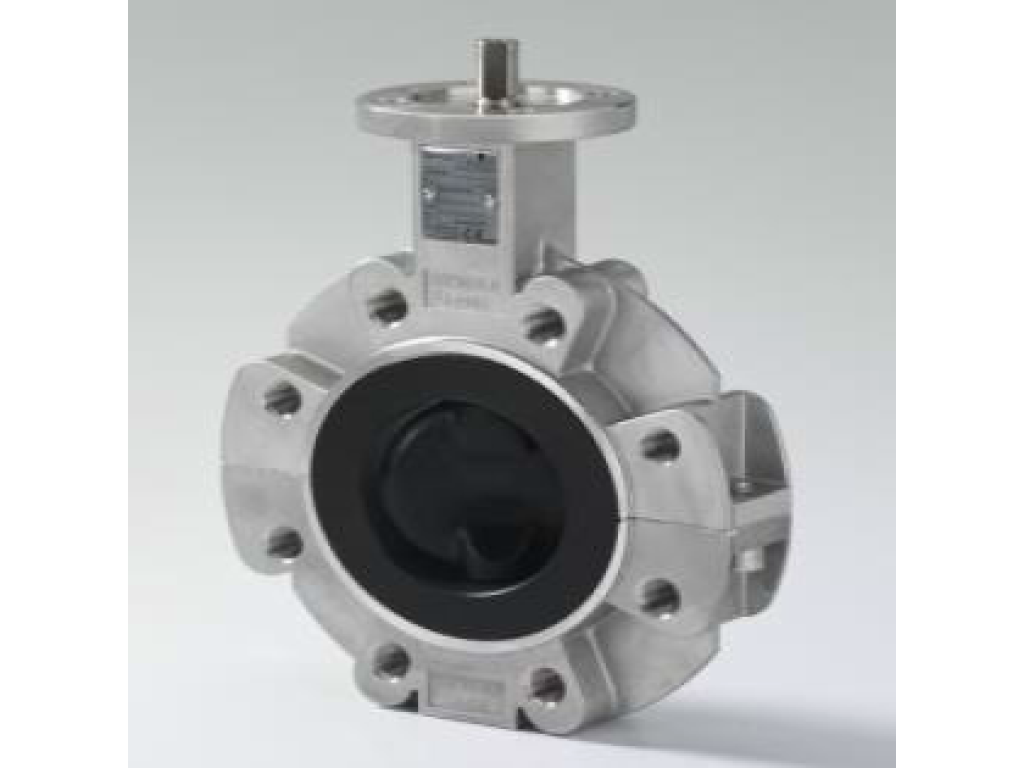

• The sturdy design bodies are made of cast steel 1.0619 (WCB), coating RAL 5005 signal-blue or stainless steel casting 1.4408 (CF-8M), with resistant liners such as PTFE, PTFE-AS (conductive), PTFE-T (mod.) or UHMWPE.
• Heavy-duty, compact construction, maintenance-free
• Bubble-tight shut-off throughout the full pressure and temperature range
• Wide selection of high-quality liner and disc materials for economical valve performance
• Unique shaft sealing arrangement assures maintenance- free operation at automated processes and high opera- ting pressures, optimized and reinforced liner shape
• No need of additional flange gaskets due to wide and chambered flange sealing surface
• One-piece disc/shaft for hysteresis-free flow control, with polished sealing surface leading to low torque values
• Flange connections acc. to ANSI 150lbs (DIN optional) for installation into existing piping systems
