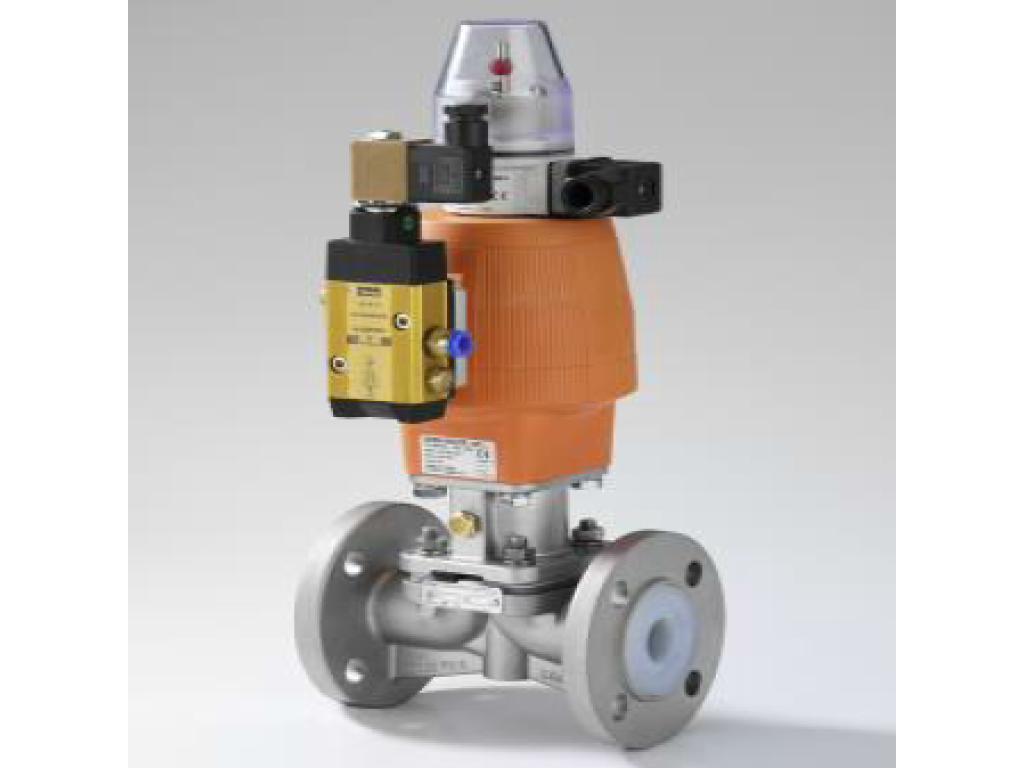

Swissfluid SDV Diaphragm Valve
Brand:
Swissfluid
- ½" – 8" SDV Diaphragm Valves are ideally suited for Shut-off, Flow Control and Throttling of corrosive process media in either liquid or gaseous state.
- Proven weir type valve body made of cast steel
- Cavity-free design
- Installation in any attitude (self-draining)
- Force limiting device protecting diaphragm
- Yellow sight indicator showing actual position of diaphragm
- Easy replacement of components on site

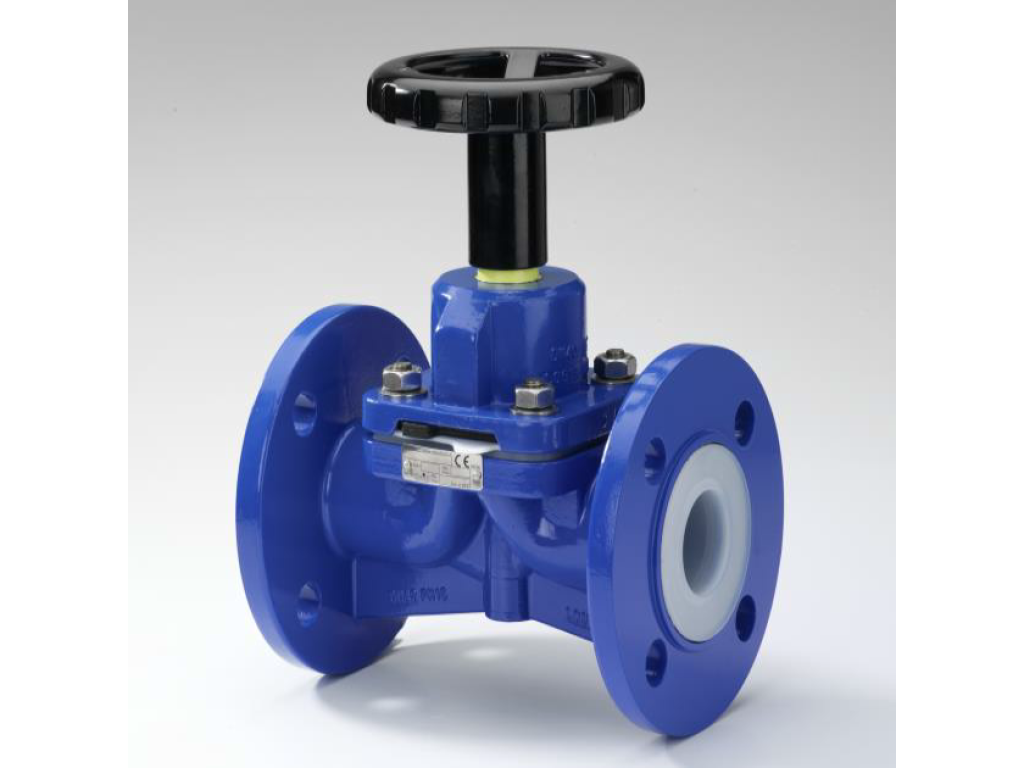

- Diaphragm Valves SDV Series are available as DIN- or ANSI-Valves, with handwheel for manual operation as per standard.
- The sturdy design bodies are made of cast steel 1.0619 (WCB), epoxy coating RAL 5005 signal-blue or stainless steel casting 1.4408 (CF-8M), with resistant linings such as PFA or PFA-AS (conductive). Proven PTFE/EPDM-diaphragms assure faultless closing function at any time.
- Heavy-duty, robust construction, maintenance-free
- Bubble-tight shut-off throughout the full pressure and temperature range
- Spindle protected against atmosheric corrosion
- Force limiting device protecting diaphragm from cold flow and other deformations, high life cycle
- Yellow sight indicator showing actual position of diaphragm
- Easy replacement of components on site
- Flanges acc. to DIN PN10/16 resp. ANSI 150lbs for installation into existing piping systems
