Swissfluid SCP Plug Valve
Brand:
Swissfluid
- ½" – 6" RP (red. port) SCP Cylindrical Plug Valves are ideally suited for Shut-off, Flow Control and Throttling of corrosive, abrasive or even toxic process media in either liquid or gaseous state.
- Two-piece body made of cast steel, top entry
- Dynamic, maintenance-free shaft sealing acc. to TA-Luft
- Cavity-free design, low torque, full port
- One-piece cylinder/shaft, blow out proof, core of SS Duplex
- Rated breaking point outside of valve
- Cylinder options such as V-port, with pressure relief hole
- Easy maintenance at severe service conditions

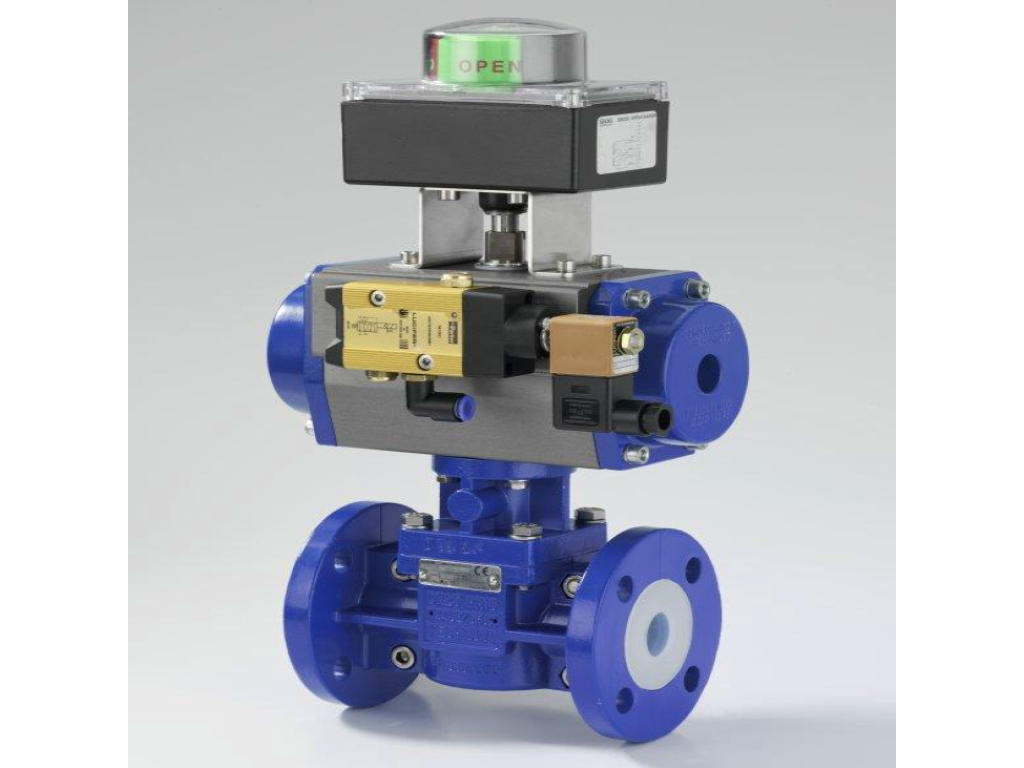

- ISO top flange for direct mounting of pneum. quarter turn actuators

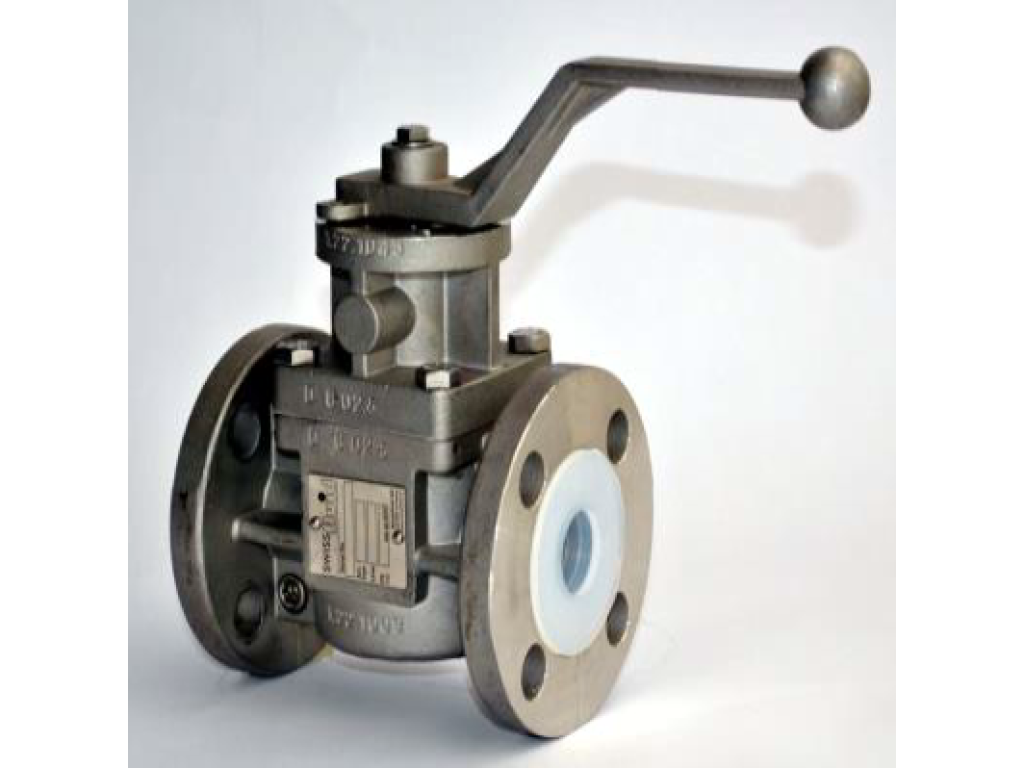

- Valves are available with handlever for manual quarter turn operation as per standard or with bare shaft for easy installation of actuator units.

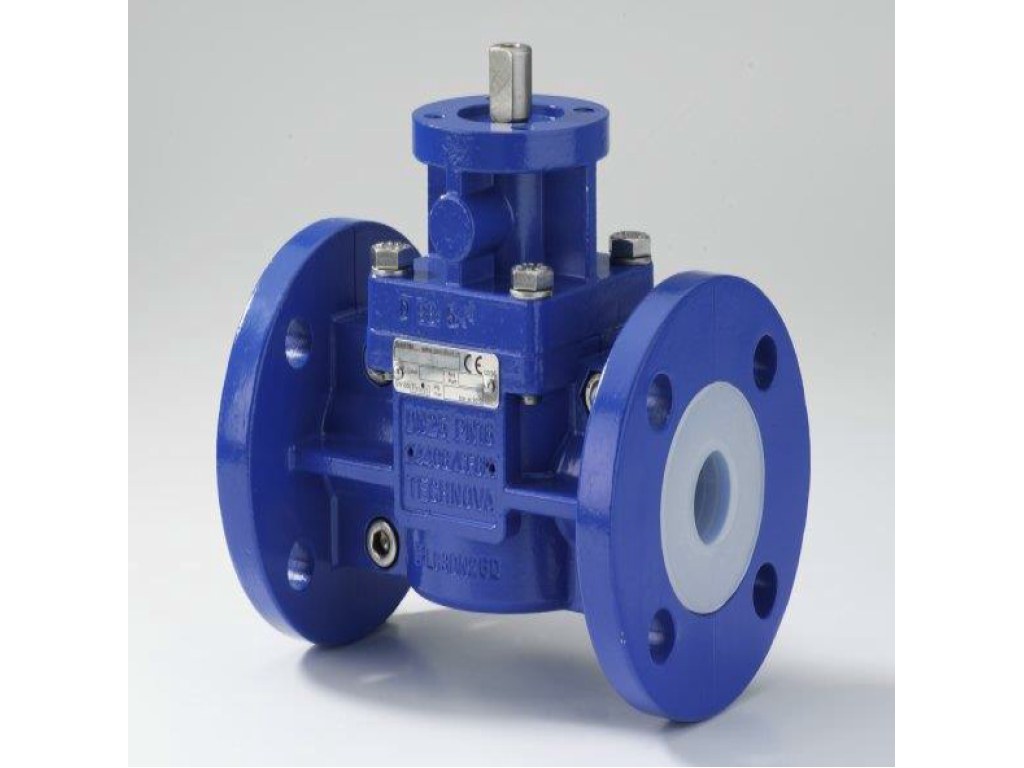

- The sturdy design bodies are made of cast steel 1.0619 (WCB), epoxy coating RAL 5005 signal-blue or stainless steel casting 1.4408 (CF-8M), with resistant linings such as PFA or PFA-AS (conductive).
- Heavy-duty, robust construction, maintenance-free
- Bubble-tight shut-off throughout the full pressure and temperature range
- Cavity-free design, max. permeation protection
- Zero stem leakage provided by an innovative stem sealing mechanism
- Consistent low operating torque through cylindrical plug design and resilient liner/cylinder contact
- Maximum flow rates at lowest pressure drops
- Easy replacement of components on site
- Flange connections acc. to ANSI 150lbs (DIN optional) for installation into existing piping systems
