Sesto M30F 2pc 300# Flanged
Class 300 Size Range 1/2” thru 8” Full Bore M30F – ISO 5211 Mount Body Wall Thickness ASME B16.34 End Connections: RF Flanged Fugitive Emissions ISO 15848 Firesafe Tested API 607 Anti-Static Device and Live-Loaded Packing Blowout Proof, Low Torque Guided Stem Design Wide Range of Soft and Metal Seated Options Manual, Electric, Pneumatic Operators Globally Certified and Approved
Sesto MU1F Unibody 150# Flanged
Class 150 Size Range 1/2” thru 4” Reduced Bore ISO 5211 Mount Pad Body Material CF8M, WCB Body Wall Thickness ASME B16.34 End Connections: RF Flanged Fugitive Emissions ISO 15848 Anti-Static Device and Live-Loaded Packing Blowout Proof, Low Torque Guided Stem Design Manual, Electric, Pneumatic Operators
Sesto MV1F Segmented Ball 150# Flanged
Class 150 Size Range 1” thru 16” ISO 5211 Mount Pad Body Material CF8M, WCB Body Wall Thickness ASME B16.34 End Connections: RF Flanged Anti-Static Device and Live-Loaded Packing Blowout Proof, Low Torque Guided Stem Design Manual, Electric, Pneumatic Operators Soft & Metal Seated Available
Sesto MM1F Multiport 150# Flanged
Class 150 Size Range 1/2” thru 12” Full Bore ISO 5211 Direct Mount Pad (Up to 4”) Body Material CF8M, WCB Body Wall Thickness ASME B16.34 End Connections: RF Flanged Anti-Static Device and Live-Loaded Packing Blowout Proof, Low Torque Guided Stem Design Manual, Electric, Pneumatic Operators
Sesto M32 3pc Ball 2000WOG
2000 WOG (Class 800)
Size Range 1/4” thru 3” Full Bore
ISO 5211 Direct Mount Pad
Body Wall Thickness ASME B16.34
End Connections: NPT, SW, BW, RF, Special
Fugitive Emissions ISO 15848
Firesafe Tested API 607
Anti-Static Device and Live-Loaded Packing
Center Body Swing-Out Design
Blowout Proof, Low Torque Guided Stem Design
Wide Range of Soft and Metal Seated Options
Manual, Electric, Pneumatic Operators
Globally Certified and Approved
Sesto M31 3pc Ball 1000 WOG
1000 WOG Size Range 1/4” thru 4”
Full Bore: NPT & SW End Connections
ISO 5211 Direct Mount Pad
Anti-Static Device and Live-Loaded Packing
Bubble Tight Shut Off
Blowout Proof, Low Torque Guided Stem Design
Manual, Electric, Pneumatic Operators
Seat Options:
TFM 1600 (-50º F to 450º F)
RTEE (-15º F to 350º F)
Testing: API 598, ISO 5208
Design: MSS SP-110, ISO 5211
Markings: MSS-SP-25
Certifications: CE

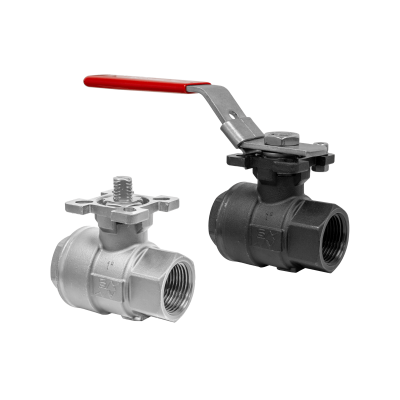

Sesto M22N 2pc Seal Weld 2000 WOG
2000 WOG (Class 800)
Size Range 1/4” thru 2” Full Bore
ISO 5211 Direct Mount Pad
Body Wall Thickness ASME B16.34
End Connections: NPT
Fugitive Emissions ISO 15848
Firesafe Tested API 607
Anti-Static Device and Live-Loaded Packing
Blowout Proof, Low Torque Guided Stem Design
Manual, Electric, Pneumatic Operators
Globally Certified and Approved
Sesto Forged Floating
Class 150 to Class 2500
Size Range ¼” thru 10” (Class Dependent)
Full and Reduced Bore
Body Wall Thickness ASME B16.34, Forged or Cast Versions
End Connections: SW, BW, RF, RTJ, NPT, BSP, Special
Fire-Safe Design API 607
Blowout Proof, Low Torque Guided Stem Design
Anti-Static Device and Live-Loaded Packing
Fugitive Emissions ISO 15848
Wide Range of Soft Seat and Metal Seat Options
Manual, Electric, Pneumatic, or Electro-Hydraulic Operators Available
Custom Face-to-Face Lengths Available per Customer Requirement
Sesto Forged Trunnion Multiport
• Class 150 to Class 2500 • Size Range ” thru 12” (Class Dependent) • Custom Sizes by Request • 3-Way and 4-Way Congurations (T, L, Double L) • 4-Seat Design, Universal Inlet/Outlet • Floating Full and Reduced Bore • Single Body Construction (No Top Flange) • Fire-Safe Design API 607 Available • Blowout Proof, Low Torque Guided Stem Design • Anti-Static Device and Live-Loaded Packing • Fugitive Emissions ISO 15848 • Wide Range of Soft Seat and Metal Seat Options • A105N, LF2, LF3, Forged Body Options • Special Materials Available Upon Request

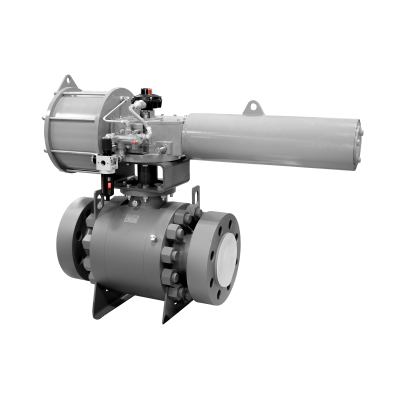

Sesto Forged Trunnion
• Class 150 to Class 2500
• Size Range ½” thru 36” (Class Dependent)
• Full and Reduced Bore
• Body Wall Thickness ASME B16.34
• End Connections: RF, RTJ, BW, SW, NPT, BSP, Special
• Fugitive Emissions ISO 15848
• Fire-Safe Tested API 607
• Emergency Sealant Injectors Optional
• Anti-Static Device and Live-Loaded Packing
• Guided Seat Design
• Blowout Proof, Low Torque Guided Stem Design
• Wide Range of Soft and Metal Seated Options
• Manual, Electric, Pneumatic, or Electro-Hydraulic Operators Available
• Custom Face-to-Face Lengths Available
Sesto Forged Block & Bleed
Class 150 to Class 2500
Size Range ¼” thru 16” (Class Dependent)
Single and Double Isolation, Multi-Port Designs Available
Floating and Trunnion, Full and Reduced Bore
Bolted Body Facilitates Inline Maintenance
Venting/Relief Designs in Multiple Configurations
End Connections: RF, RTJ, BW, SW, NPT, BSP, Special
Fugitive Emissions ISO 15848
Fire-Safe Tested API 607
Anti-Static Device and Live-Loaded Packing
Guided Seat Design on Trunnion Design
Blowout Proof, Low Torque Guided Stem Design
Wide Range of Soft and Metal Seated Options
Manual, Electric, or Pneumatic Operators Available
Custom Face-to-Face Lengths Available
Sesto Forged Cryogenic
Class 150 to Class 2500
Size Range ¼” thru 24” (Class Dependent)
Floating and Trunnion, Full and Reduced Bore
Body Wall Thickness ASME B16.34, Forged or Cast Versions
Cryogenic tested to -196°C (-320°F)
Fire-Safe Design API 607
Vented Ball Standard
Blowout Proof, Low Torque Guided Stem Design
Live-Loaded Packing and Anti-Static Capable
Fugitive Emissions ISO 15848
PTFE, TFM, CTFM, PCTFE (KEL-F®) and Metal Seats Available
Valves are degreased, cleaned and packaged prior to shipping
Custom Face-to-Face Lengths Available per Customer Requirement
Manual, Electric, Pneumatic, or Electro-Hydraulic Operators Available
Mosite C10
The Mosites C10 Butterfly Valve, which is fully elastomer lined, is in use
throughout the world in a wide range of critical service applications. The
control of water, chemicals, air, slurries, and vapors to 150 psi bubble-tight
shut off can be achieved with the Mosites Butterfly Valve.
Mosite C10N
The Mosites C10 Butterfly Valve, which is fully elastomer lined, is in use throughout the world in a
wide range of critical service applications. The control of water, chemicals, air, slurries, and vapors
to 150 psi bubble-tight shut off can be achieved with the Mosites Butterfly Valve. The C10N
incorporates the same unique features as the C10 and meets API 609 and MSS-SP 67 laying
length (face-to-face) dimensions for quick placement of standard butterfly valves
Mosite A20
The Mosites A20 Butterfly Valve was developed in response to market demand for a
high cycle butterfly valve. Reduced torque and low profile disc increases the A20 cycle
capabilities and economizes actuation cost. Uniquely suited for applications involving
continuous cycling, the Mosites A20 Butterfly Valve provides reliable service in flow
control applications.
