Actuators

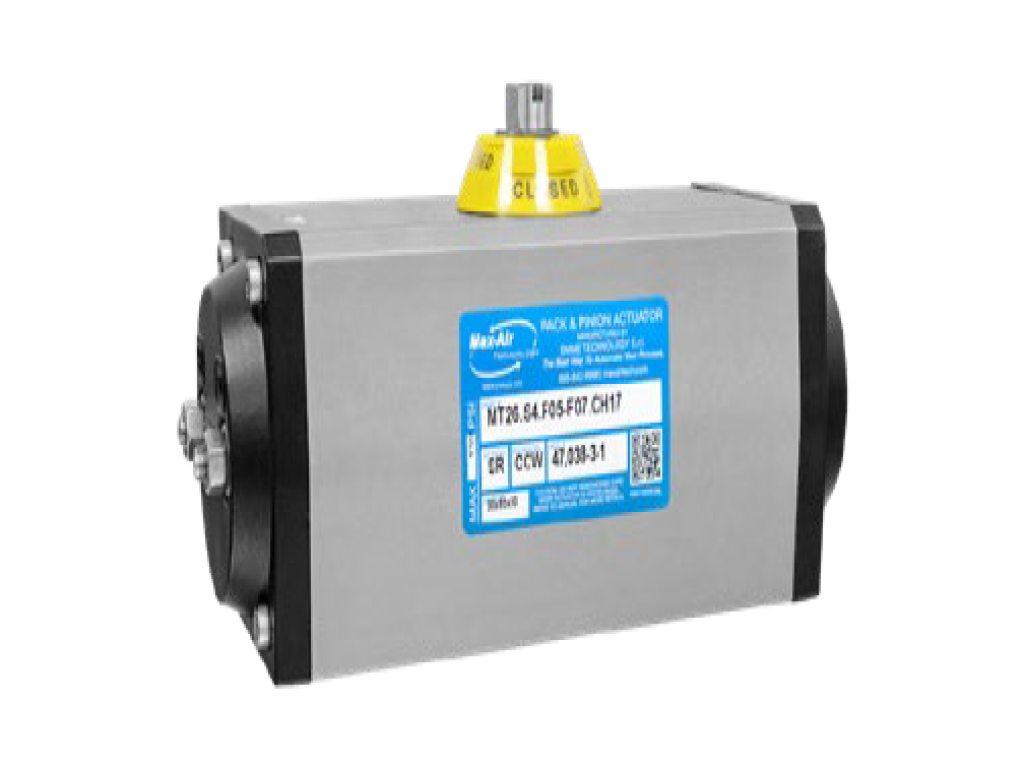

MT Series Aluminum Rack & Pinion Actuator
Brand:
Max-Air Technologies
- Two ISO bolt circle patterns drilled directly in the body
- NAMUR standard mounting for accessories
- Our patented ±10° adjustment for the open/closed positions
- All backed by the best unlimited cycle life warranty
- Proprietary LockMesh® Coating
- LockMesh® provides the chemical resistance of PTFE along with the durability of a stainless steel base layer

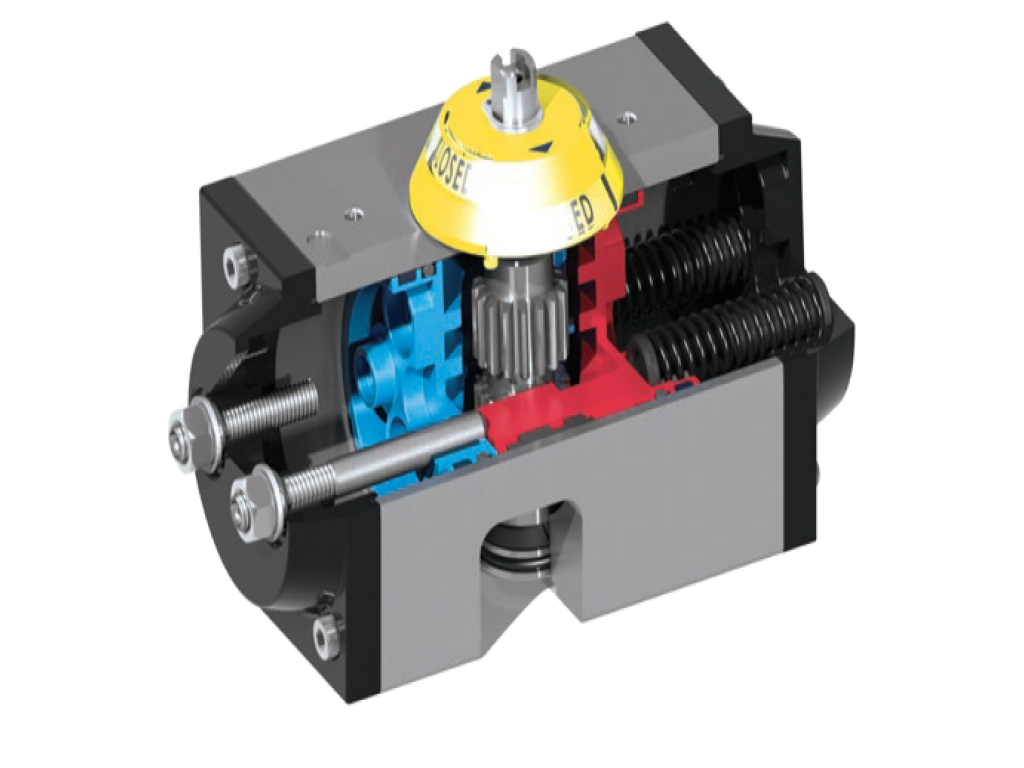

- Compact Rack and Pinion Design
- 3D Models Available for All 17 Sizes
- Direct ISO 5211 Standard Valve Mounting
- Direct NAMUR Accessory Mounting
- Anti-Blowout Bi-Directional Pinion Retention
- High Visibility Open/Closed Beacon

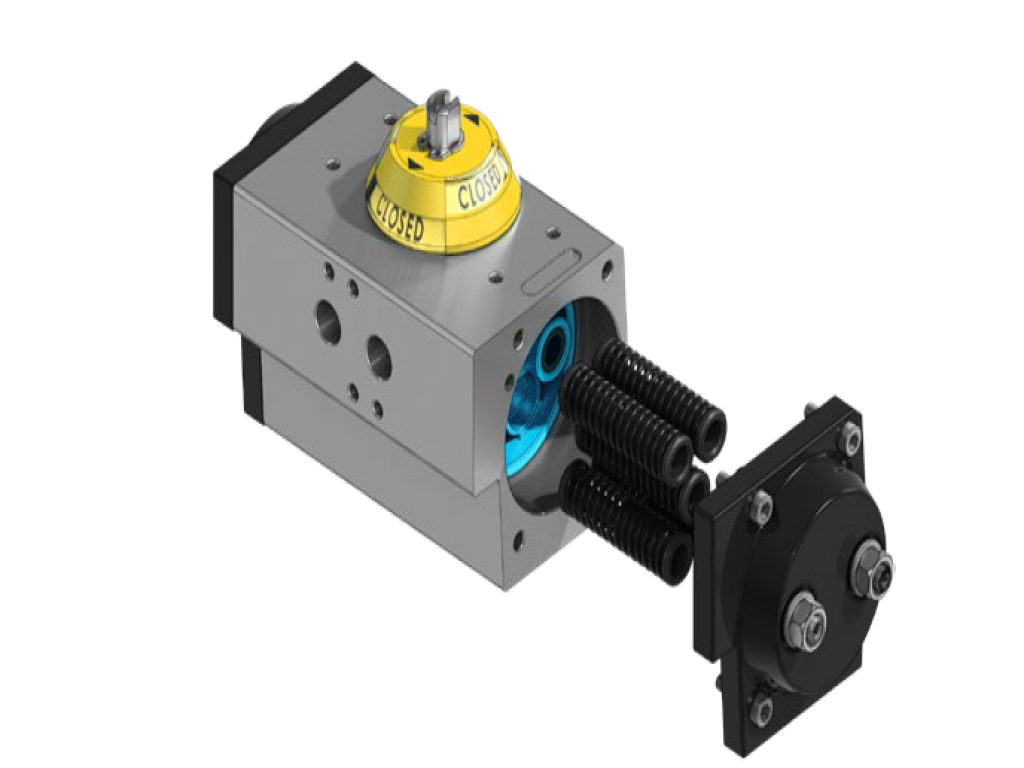

- Pre-Loaded Spring Cartridges
- Double-Acting (Air-to-Air) Operation
- Spring-Return (Air-to-Spring), Fail-Close or Fail-Open
- Standard (CCW open) or Reverse (CW open) Rotation
- Patented Dual Travel Stop Design ±10° Adjustment
- Designed for High Cycles 1,000,000+
- Unlimited Cycle Life Warranty Options:
- Female Double-D and Keyed Pinions
- T-Port & L-Port indicators for multiport applications
- Extended travel stops for greater stroke adjustment
- ENP, Polyamide Epoxy, & LockMesh™ coatings
- Alternative Operating Media (Water, Oil, Inert Gas)
- High and Low Temperature Options
- Fast Open / Fast Close Options
