REOTEMP’s Series PG15/20 gauges are an economical choice where ambient corrosion and vibration are of concern. The stainless steel case and ring offer excellent corrosion resistance, and is fillable for vibration or pulsation applications. It is suitable for all fluids compatible with copper alloys. Stainless Steel Case Copper Alloy Wetted Parts Glycerin Filled or Dry/Fillable Convenient Panel Mounting Adapters ASME B40.100 Design

REOTEMP’s Series PG25/40C gauges are an economical choice where ambient corrosion and vibration are of concern. The stainless steel case and ring offer excellent corrosion resistance, and is fillable for applications with vibration. It is suitable for all fluids compatible with copper alloys. Stainless Steel Case Copper Alloy Wetted Parts Glycerin Filled or Dry/Fillable Convenient Panel Mounting Adapters ASME B40.100 Design

REOTEMP’s Series PG25/40S gauges are an economical choice where ambient corrosion and vibration are of concern. The stainless steel case and ring offer excellent corrosion resistance, and are fillable for applications with vibration. The PG25/40S is suitable for all fluids compatible with copper alloys. Stainless Steel Case Copper Alloy Wetted Parts Glycerin Filled or Dry/Fillable Removable Bayonet, Adjustable Pointer ASME B40.100 Design

REOTEMP’s Series PCS low pressure gauges offer accurate and reliable measurements of gaseous media. Offered with stainless steel internals, the Series PCS is designed to withstand corrosive media and ensure a long-lasting instrument. Sensitive Diaphragm/Capsule Mechanism All-Welded 316 Stainless Steel Capsule and Socket Easy-Access Zero Reset Screw on Dial NACE MR-0175 and MR-0103 Compliant ASME B40.100 Design

REOTEMP’s Series PC45 low pressure capsule gauges offer accurate and reliable measurements of gaseous media. Offered with stainless steel internals, they are designed to withstand corrosive media and ensure a long-lasting instrument. Sensitive Diaphragm/Capsule Mechanism Safety Blowout Back Easy-Access Zero Reset Screw on Dial NACE MR-0175 and MR-0103 Compliant ASME B40.100 Design

REOTEMP’s Series PC25N2 brass gauges are designed for use in low pressure applications with dry gasses that are compatible with copper alloy. Examples include: exhaust systems and blowers. Sensitive Diaphragm/Capsule Mechanism Easy-Access Zero Reset Screw on Dial Economical Design for Non-Severe Service ASME B40.100 Design

REOTEMP’s Series PC25S2 brass gauges are designed for use in low pressure applications with dry gasses that are compatible with copper alloy. Examples include: exhaust systems and blowers. Sensitive Diaphragm/Capsule Mechanism Stainless Steel Case Easy-Access Zero Reset Screw on Dial Economical Design for Non-Severe Service ASME B40.100 Design

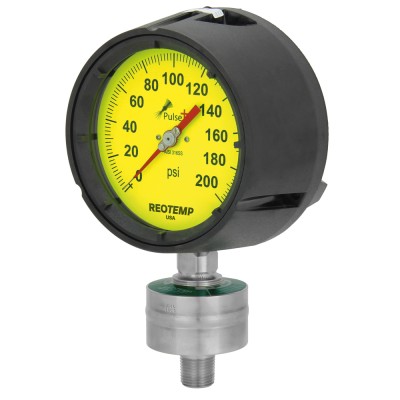

REOTEMP’s All-Welded Pressure Seal Gauge™ offers superior diaphragm seal safety and performance at an economical price. Combined with a gauge or transmitter, the tamper-resistant all-welded diaphragm seal reduces potential leak points, making it ideal for installations where process integrity and worker safety are paramount. Combined with PulsePlus™ protection, the Series MS8 can potentially triple the life of your gauge or transmitter. Increases the Life of the Gauge by Up to 3x Reduce/Eliminate Fugitive Emissions Available Up to 5,000 psi Eliminate Potential Leak Points Tamper Resistant Compliant to NACE MR0175, MR0103

The Reotemp MS9 is a high-accuracy diaphragm seal developed primarily for low pressure applications. The MS9 offers improved temperature stability, critical for outdoor installations. Extra-Large Diaphragm for High Accuracy, High Displacement, or Low Pressure Applications Reduce/Eliminate Fugitive Emissions Eliminate Potential Leak Points Tamper Resistant No Internal Gasket, Ideal for High Temperatures and Long Life

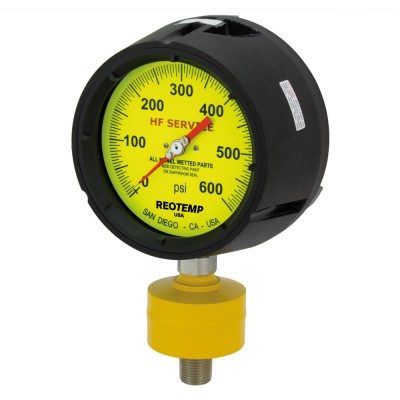

REOTEMP Model MSX HF Safety Gauge is a specially designed Mechanical Pressure Gauge for use in Hydrofluoric Acid service. Both the diaphragm seal components and pressure gauge internals are made with Monel A400 material, complying with EPA rules on dual containment. The entire diaphragm seal system is completely welded and coated with acid-detecting paint providing a visual alert in the event of a process leak around the diaphragm seal. All Welded System Eliminating Potential Leak Points and Assuring Tamper-Proof Installation Gold Plated Monel Diaphragm Available for Aerated HF Service Acid Detecting Paint on Seal Body Assembly Cleaned per ASME B40.1 Level IV and Shipped in Sealed Bag

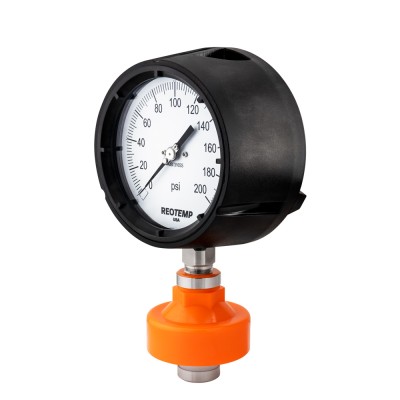

Reotemp’s Model PLS Plastic Chemical Seals provide complete isolation of pressure measurement instruments such as dial pressure gauges, pressure transmitters, and switches from a wide variety of corrosive or ultra pure process fluids. Also know as a Gauge Guard or a Gauge Isolator, the Model PLS features all non-metallic wetted components, offering a robust, durable, and economical solution to pressure measurement applications in Wasterwater, Water Treatment, Chemical Processing, Deslination, and other applications where plastic piping is traditionally used.

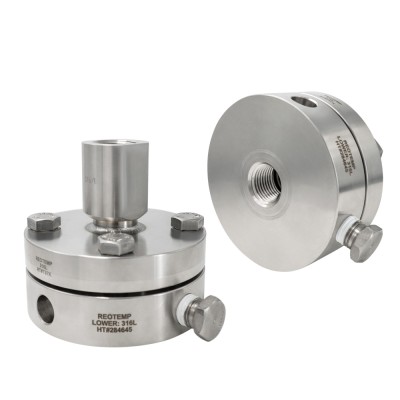

Reotemp’s Threaded Offline Welded Diaphragm Seals are designed with an upper and lower housing bolted together with a diaphragm welded to the upper housing. This removable design allows for easy cleanout of the seal chamber, while still maintaining the system fill. The threaded offline diaphragm seal can be adapted to fit almost any pressure instrument and process application. Welded Diaphragm for Maximum Durability Wide Variety of Diaphragm and Material Options Continuous-duty Disc Protects from Process Fluid Leaking in the Event of a System Breach Easy Cleanout of Diaphragm Cavity without Compromising Filled System

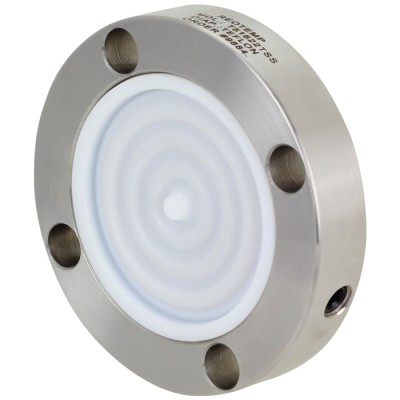

Reotemp’s Threaded Offline Non-Metallic Diaphragm Seals are designed with an upper and lower housing bolted together with a Teflon or Viton diaphragm bonded to the upper housing. This design allows for the lower housing to be removed for easy cleanout of the seal chamber while still maintaining the system fill. The Teflon and Viton diaphragms are ideal for protecting the pressure instrument from corrosive process fluid. Removable Lower Housing Design for Easy Cleanout Wide Variety of Plastic and Metallic Lower Housing Materials Highly Sensitive and Corrosion Resistant Diaphragm High Displacement Diaphragms Ideal for Mechanical Differential Pressure Gauges and Low Pressure Gauges

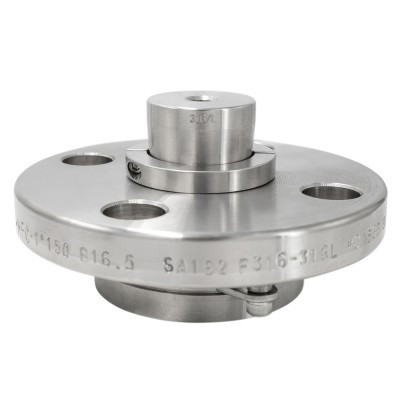

Reotemp’s Flanged Offline Welded Diaphragm Seals are designed with an upper and lower housing, bolted together with a diaphragm welded to the upper housing. This removable design allows for easy cleanout of the seal chamber, while maintaining the system fill. The flanged offline diaphragm seal can be adapted to fit almost any pressure instrument and process application. Welded Diaphragm for Maximum Durability Wide Variety of Diaphragm and Material Options Continuous-duty Disc Protects from Process Fluid Leaking in the Event of a System Breach Easy Cleanout of Diaphragm Cavity without Compromising Filled System

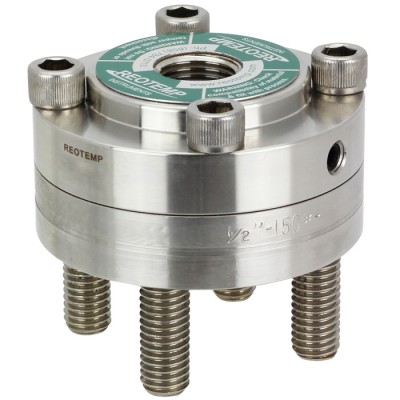

Reotemp’s Flanged Offline Non-Metallic Diaphragm Seals are designed with an upper and lower housing bolted together with a Teflon or Viton diaphragm bonded to the upper housing. This design allows for the lower housing to be removed for easy cleanout of the seal chamber while still maintaining the system fill. The Teflon and Viton diaphragm are ideal for protecting the pressure instrument from corrosive process fluid. Removable Lower Housing Design for Easy Cleanout Wide Variety of Plastic and Metallic Lower Housing Materials Highly Sensitive and Corrosion Resistant Diaphragm High Displacement Diaphragms Ideal for Mechanical Differential Pressure Gauges and Low Pressure Gauges
