Swissfluid SIV Inline Sampling Valves
Brand:
Swissfluid
- ½" – 6" Inline Valves for safe and representative sampling of corrosive, aggressive or even toxic media from pipe- lines, pressurized or at vacuum conditions – without process interruptions.
- Bodies wafer- style and flanged version
- Easy, safe operation
- Dead-space-free design
- Installation in any given position
- Maintenance-free stuffing box or bellows seal acc. to TA-Luft
- Large outlet bore, adjustable spindle stroke
- Leakage control connection
- Adapter with quick clamp system
- Corrosion-resistant materials as well as various alloys
- Wide selection of options and accessories
- Combinable with closed sampling systems
- SIV Sampling Valves are available as wafer-style or flanged valves.
- The valves are distinguished by its dead- space-free design as well as the extremely short outlet way for the representative sample.
- The sturdy bodies are made of stainless steel casting 1.4408 (CF-8M) or optional with resistant linings and valve spindle encapsulations.
- Bodies wafer-style or flanged, dead-space-free design, conforming to TA-Luft
- Safe and simple operation by standard handwheel, handwheel spring to close (top or lateral) or with spring return deadman lever (fail safe close)
- Installation in any given position
- Corrosion-resistant materials, linings and encapsulations made of PFA or PFA-AS (conductive)
- Precision sampling for small sample volumes by valve spindle stroke adjustment
- Maintenance-free stuffing box or bellows seal
- Replaceable spindle gasket
- Flange connections acc. to ANSI 150lbs (DIN opt.)
- Variety by modular design Options / Accessories

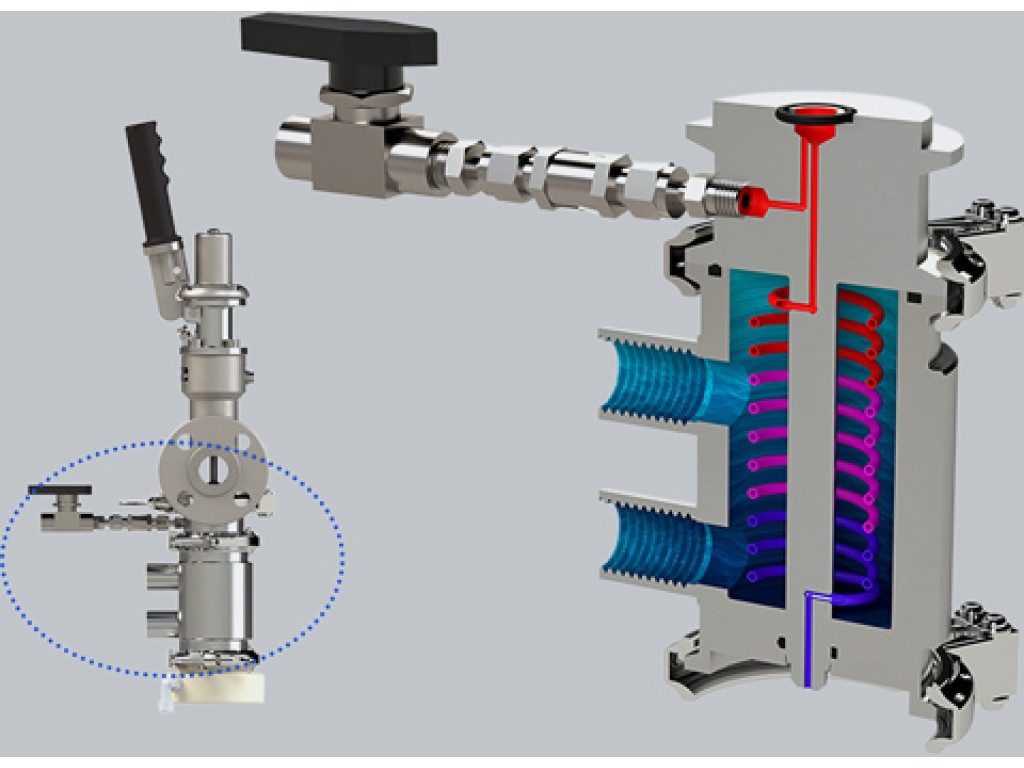

- Bodies with heating jacket
- Needle adapter for lab bottle with septum
- Bottle support, adjustable

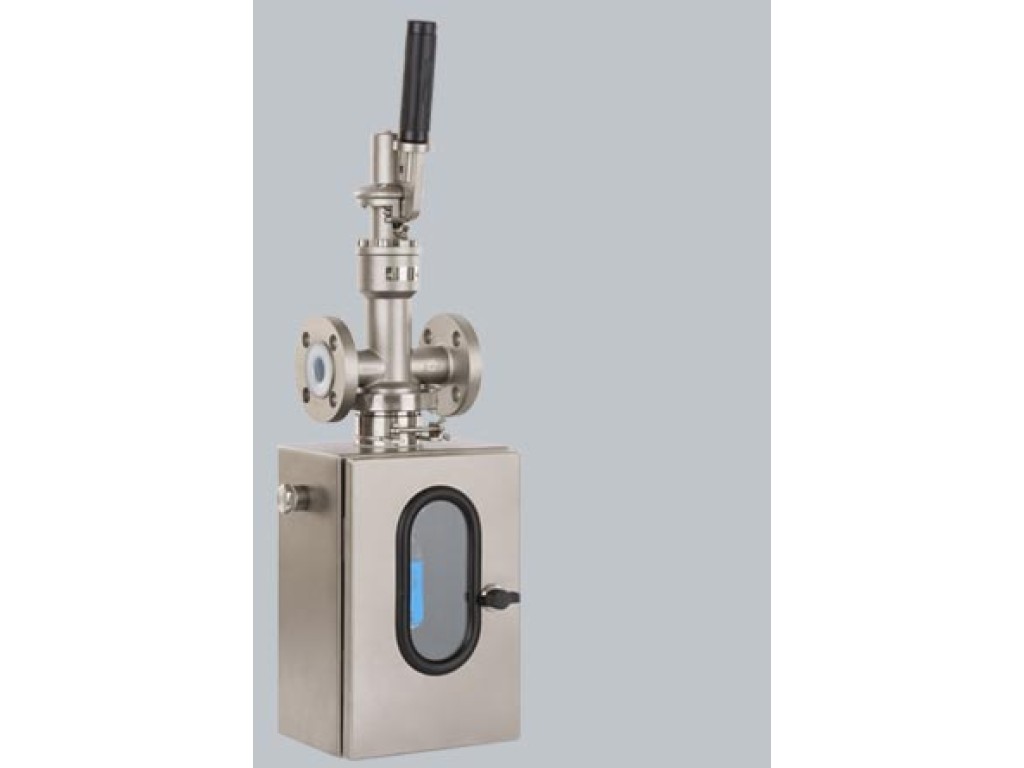

- Safety cabinet with inspection windows
- Flange versions: groove, ANSI 300lbs, PN16/40, clamp or with buttwelding ends
- Vertical adapter, sealing plug, activ. carbon filter
- Metal safety basket, with spring loaded plate
- Sampling collector, piston injector (syringe)
- Pneum. linear stroke actuator, single-acting FC
