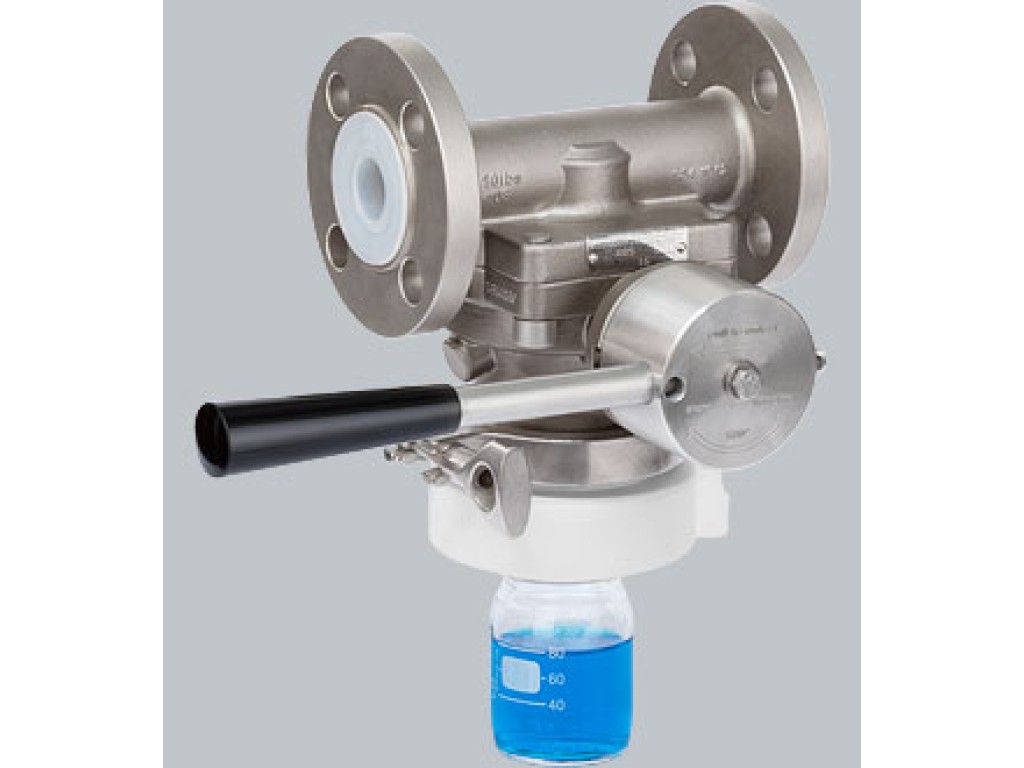

Swissfluid SSB Sampling Ball Valves
Brand:
Swissfluid
- ½” – 6”, full port for safe and representative sampling of aggressive or even toxic liquids from pressurized pipelines without any process interruptions.
- Body lined or fully made of stainless steel
- Easy and safe operation, nonpressurized sampling
- Horizontal or vertical installation
- Defined sampling volume
- Extraction of smallest samples
- Full port design, easy cleaning (piggable)
- Sampling from vacuum systems
- Interruption of system pressure through pressure lock
- Simple automation with time control
- Sampling unit for installation onto vessels
- SSB Sampling ball valves are distinguished by their fixed sample volume of 40ml (1.35oz) which is isolated from the process as the valve is being operated.
- The sturdy bodies are made of stainless steel casting 1.4408 (CF-8M), optional with chemically resistant linings such as PFA or PFA-AS (conductive).
- Full-port design, no pressure drop
- Fixed sample volume of approx. 40ml (1.35oz)
- Sample isolated from process as valve is operated
- Only one opening to the atmosphere
- Lockable handle with two stops for easy 180° degree motion
- ISO-flange according to ISO 5211 allows direct automation with pneumatic or electric actuators
- Zero stem leakage provided by an innovative stem sealing mechanism
- Easy maintenance, same spare parts for all sizes
- Piggable Options
- Purge Connection
- Vertical adapter
- Pneumatic or electric actuator (with optional timer unit)
- Adj. bottle support with spring-loaded plate
- Safety cabinet (SS or PP) with windows
- Activated carbon filter
- Sealing plug
