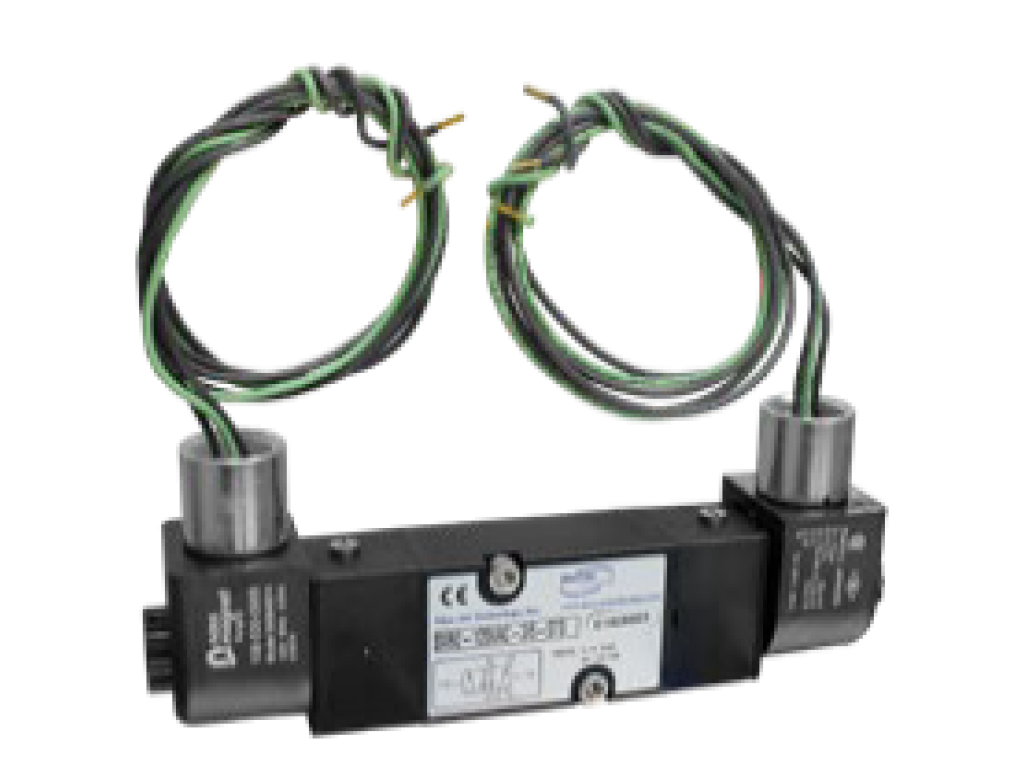

Max-Air Technology’s solenoid valves are CSA approved, built,
tested and made to order in the USA. Our SV NAMUR mount
and NV inline series feature a modular design with extensive coil
and connector options, pilot configurations, and seal materials.
Stainless steel bodies are also available in the SSV series.

Standard Features:

• Direct mount compatible with any Max-Air rack & pinion actuator (or any actuator with ¼” NAMUR pattern)
• Multiple voltages available (AC/DC)
• Water and dust proof according to IP65, IP67 available
• Standard duty, intrinsically safe & explosion proof models
• Suitable for use with other Max-Air NAMUR speed controls
• Standard lockable manual override button
• Locations Ordinary, Hazardous, IP65
• Materials Aluminum, Stainless Steel
• Ambient Temp. Ranges 4°F to 122°F Standard (158°F High Temp Option)
• Body Type 3 or 4 Way Aluminum
• Operation Media Gas
• Voltages AC/DC, Ordinary & Hazardous Locations
• Mounting NAMUR or Inline NPT
• Available Options 3-Way & 4-Way Polymer or Aluminum Spacer Plates, LED DIN Connector

SV Series Technical Datasheet
