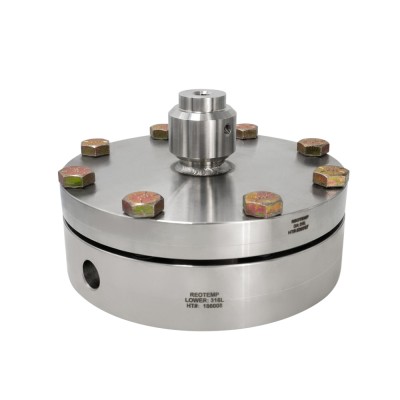

REOTEMP’s High Accuracy and High Displacement Threaded Diaphragm Seals are ideal for applications where high sensitivity or large fluid displacement is key to proper instrument performance. Designed with a diaphragm welded to the upper housing, the lower housing is detachable from the seal body allowing for easy cleanout of the process cavity without losing system fill. The High Accuracy Threaded Diaphragm Seal is most commonly mounted to Smart Transmitters (Gauge, Differential, and Absolute pressure), low pressure capsule gauges, mechanical DP gauges, and mechanical pressure switches. Extra Large 4.1″ Diaphragm for Maximum Sensitivity Wide Variety of Wetted Material Options 100% Helium Leak Tested Diaphragm Welds Easy Cleanout Design with Multiple Flush Port Options

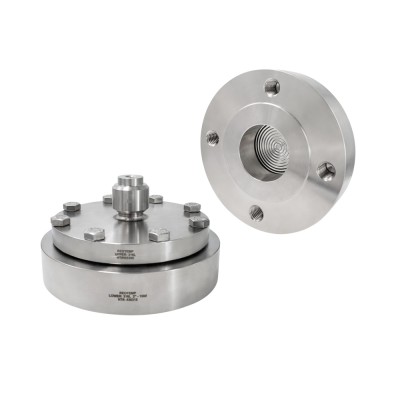

REOTEMP’s High Accuracy Flanged Diaphragm Seals are ideal for applications where high sensitivity or large fluid displacement is key to proper instrument performance. Designed with a diaphragm welded to the upper housing, the lower housing is detachable from the seal body allowing for easy cleanout of the process cavity without losing system fill. The High Accuracy Flanged Diaphragm Seal is most commonly mounted to Smart Transmitters (Gauge, Differential, and Absolute pressure), low pressure capsule gauges, mechanical DP gauges, and mechanical pressure switches. Extra Large 4.1″ Diaphragm for Maximum Sensitivity Wide Variety of Wetted Material Options 100% Helium Leak Tested Diaphragm Welds Easy Cleanout Design with Multiple Flush Port Options

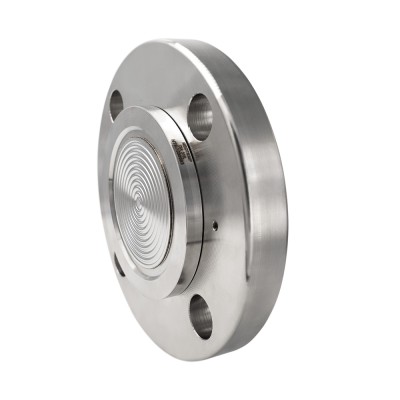

Reotemp’s W9FR two-piece flanged flush-face seal keeps the process stream sweeping clean across the diaphragm to prevent solids buildup. Its insert-style, all-welded construction lets the diaphragm and sealing face be fabricated from an alloy other than the flange—ideal when Tantalum, Hastelloy, Monel, or other exotic wetted materials are required. The rotating flange further simplifies bolt alignment during installation. Multi-piece Seal Design Bolts Directly to Process Flange Center Instrument Exit Commonly Supplied with Flush/Calibration Ring Ideal for Gauge or Differential Pressure Transmitters

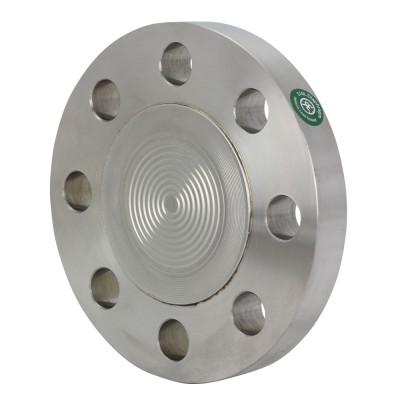

Reotemp’s W9FF flanged flush-face seal is a one-piece, all-welded assembly. The diaphragm is integral with the flange, giving a crevice-free surface that keeps process flow sweeping across to prevent solids buildup. It is the most economical choice for 316 SS service, and can also be supplied in solid Hastelloy, Monel, Alloy 20, and other exotic alloys when enhanced corrosion resistance is required. One-piece Seal Design Bolts Directly to Process Flange Center or Side Instrument Exit Commonly Supplied with Flush/Calibration Ring Ideal for Gauge or Differential Pressure Transmitters

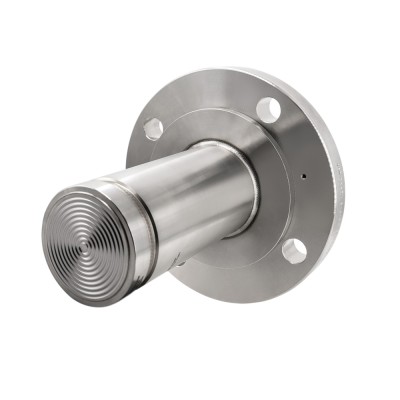

The Extended Diaphragm Seal is ideal for highly viscous and dry powder applications. Its unique design eliminates dead space in piping. It is often used for flush mounting in thick-walled vessels and is available in standard and custom lengths.

Quality Products & Sales stocks Bleed Rings from 1" to 12" sizes in pressure ratings 150# to 1500#. Raised and Ring Joint styles are available in Carbon and Stainless Steel. Other materials and sizes quoted upon request.

Manufactured 100% in house SW Eliminate threaded connections. Allows for on site calibration, venting, & purging. No break of the process flange CRN approved

Allows for transmitter calibration, venting and purging The seal and process size transition design reduces installation and maintenance costs Our engineered and manufactured-in-house design can be adapted and modified for your specific application Eliminates the need for a reducing spool Valve options available upon request Manufactured in accordance with ASME, ASTM and ANSI standards Available in carbon steel and stainless steel. Also available in most alloy materials CRN approved

Allows for easier installation on-site Engineered and manufactured-in-house, designs can be adapted and modified for your specific application Various valve options available upon request Manufactured in accordance with ASME, ASTM and ANSI standards CRN approval available upon request

Eliminates the need for a reducing spool Valve options available upon request Available in carbon steel and stainless steel. Also available in most alloy materials. Manufactured in accordance with ASME, ASTM and ANSI standards CRN approved

Differential pressure is applied to the bellows and mechanical linkage assembly. As pressure changes, the bellows and linkage assembly is mechanically coupled to the gauge indicator pointer. If equipped with a micro-switch, a cam mechanically linked to the bellows, rotates and triggers the micro-switch. The major components of the Model 105/106 are a two-piece body, bellows sensing element and over-pressure assembly, a torque tube assembly, a range spring and the gauge front assembly. Model 105/106 assembly is protected against over-range in either direction to the rated working pressure by a bi-directional relief valve. Powered by a test quality Bourdon Tube Assembly which is encapsulated in a high pressure chamber that is fitted with a pressure connection to the inside of the Bourdon Tube and a second connection to the pressure chamber. The Model 109 indicates the difference between the pressure applied inside the Bourdon Tube and the pressure inside the chamber. The output shaft of the gauge assembly is magnetically coupled through the solid wall of the pressure chamber to a sensitive jeweled pointer shaft in the dial housing outside the chamber. The magnetic coupling transmits the exact motion of the assembly to the pointer to give an accurate dial reading of the differential pressure. The Bourdon Tube Assembly is protected against over-range in either direction to the rated working pressure by a bi-directional relief valve.

0-5 PSID to 0-400 PSID Mid-West Instrument piston type gauges offer safe working Pressures up to 10,000 PSI Rugged construction Weather Proof design Common Applications: Filter and Strainer Monitoring Compressed Air Hydraulic Refrigerant Pump Performance Testing Heat Exchanger Pressure Drop Monitoring Valves, Chillers etc., and for local flow indication and control Gauge, Switch and Transmitter options

0-20” H2O to 0-100 PSID Safe working Pressures up to 3,000 PSI Rugged construction Weather Proof design Common Applications: Filter and Strainer Monitoring Compressed Air Hydraulic Refrigerant Pump Performance Testing Heat Exchanger Pressure Drop Monitoring Valves, Chillers etc., and for local flow indication and control Gauge, Switch and Transmitter options

0-10” H2O to 0-800” H2O Mid-West Instrument tank level type gauges handle safe working Pressures up to 1000 PSI Rugged construction Weather Proof design Common Applications: Pressurized Tank Level Monitoring Stationary Tanks – Horizontal or Vertical Tanker Transport For materials such as LOX, CO2, Ammonia, Nitrogen, Helium, Nitrogen Hydrogen and Argon Gauge, Switch and Transmitter Options

Over 30 Years of proven design in the field for use in Hazardous locations CSA, UL, IECEx Certifications LVD RoHS Compliant Certifications apply to the entire assy. as mandated by Hazardous Location Stds. 3-4 Unannounced inspections by CSA and UL per year Yearly ATEX audits See individual models for complete specifications
