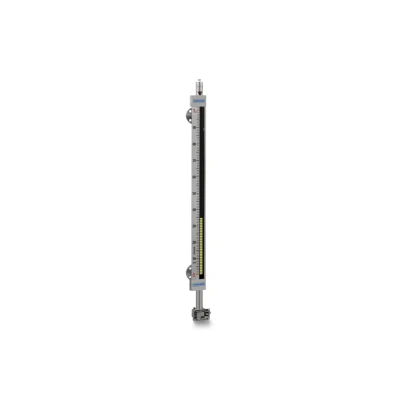

Magnetic level indicator for basic liquid applications Cost-effective level measurement; no power supply needed Measuring range: 0.3…5.5 / 1...18 ft (others on request) Density: 700…1200 kg/m3 / 43.7…74.91 lb/ft3 -70…+200°C / -94…+392°F; -1…40 barg / -14.5…580 psig

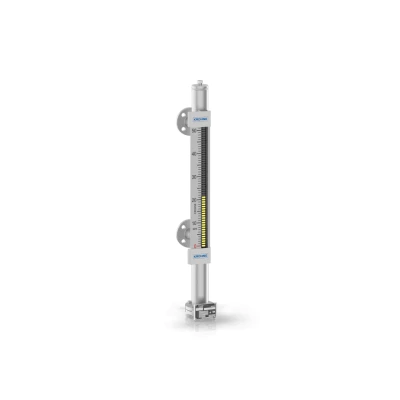

Magnetic level indicator for corrosive liquids Made of PVC, PP or PVDF for high corrosion resistance to aggressive chemicals; no power supply needed Measuring range: 0.5…4 m / 1.64…13 ft (others on request) Density: 560…1200 kg/m3 / 34.96…74.91 lb/ft3 -20…+100°C /-4…+212°F; 0…6 barg / 0...87 psig

Magnetic level indicator for liquefied gas Designed for low temperature and cryogenic media; no power supply needed Measuring range: 0.3…5.5 m / 1...18 ft (others on request) Density: 500…1200 kg/m3 / 31.21…74.91 lb/ft3 -196…+200°C / -320.8…+392°F; -1…40 barg / -14.5…580 psig

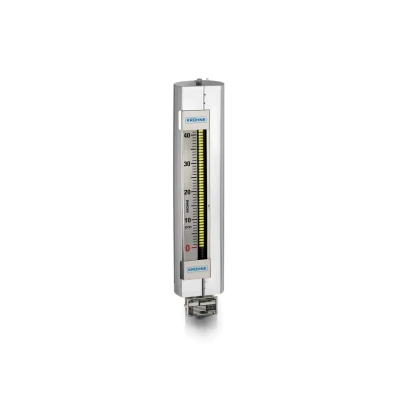

Magnetic level indicator for extreme operating conditions Designed for level and interface measurement of high-temperature and high-pressure liquids; no power supply needed Measuring range: 0.3…5.5 m / 1...18 ft (others on request) Density: 370…1200 kg/m3 / 23.9…74.91 lb/ft3 Up to +400°C / +752°F; 400 barg / 5801 psig

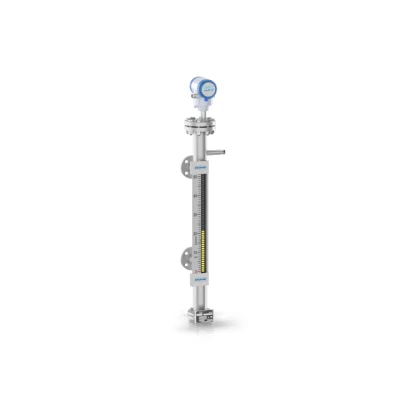

Magnetic level indicator with level transmitter for liquids in redundant measurement Designed for redundant level measurement combining magnetic level indicator and guided radar (TDR), radar (FMCW) or displacer technology Measuring range: 0.3…5.5 m / 1...18 ft (others on request) Density: 370…1200 kg/m3 / 23.9…74.91 lb/ft3 Up to +400°C / +752°F; 400 barg / 5801 psig

The in-tank liquid level transmitter is a continuous multi-functional Magnetostrictive transmitter that provides product level, interface level, and temperature to the user via Analog (4-20mA) with HART®, Modbus RTU (Remote Terminal Unit) or DDA (Direct Digital Access). Magnetostrictive technology is one of the most accurate and repeatable level technologies available to date. Once the transmitter is installed and calibrated, there is no requirement for scheduled maintenance or recalibration.

The KENCO Magna-Site is a magnetic level gauge used to determine the volume of liquid contained within a tank. Because the Magna-Site eliminates the need for glass, high pressure applications and hazardous locations are protected from the danger of a chemical spill due to glass failure.

The patented K9900 Series Level Gauge features an innovative casting design which will simplify the installation process and eliminate other typical problems associated with gauge glass. The K9900 Series incorporates floating misalignment unions, which will allow the process connection centerlines to vary +/-1/4″. The gauge also has integral offset pattern valves with ball check shutoffs. 1/2″ FNPT vent and drain connections are inline for routine sight glass maintenance. The K9900 Series Level Gauge delivers a safe, low maintenance, cost effective solution to common sight glass applications.

KENCO Flat Glass Gauges are used where direct visual observation of process fluids is required. These gauges are suitable for a wide range of applications with pressures up to 4000 psig (275.79 bar) @ 100°F (37.7°C), and temperatures up to 750°F (398.8°C) @ 2300 psig (158.57 bar). KENCO gauges are available in a wide variety of construction materials, connections and other options to meet most specifications.

KENCO Flat Glass Gauges are used where direct visual observation of process fluids is required. These gauges are suitable for a wide range of applications with pressures up to 4000 psig (275.79 bar) @ 100oF (37.7°C), and temperatures up to 750oF (398.8°C) @ 2300 psig (158.57 bar). KENCO gauges are available in a wide variety of construction materials, connections and other options to meet most specifications.

KENCO Weld Pad Flat Glass Gauges are used where direct visual observation of process fluids is required. This gauge style is designed to be welded directly to the vessel wall and is available with either reflex or transparent glass configurations. Transparent configurations can be provided with mica or Kel-F shields if needed. Multiple different ASME approved material options are offered for the wetted chamber. All materials meet or exceed ASTM standards to withstand even the most demanding application requirements. In addition to the different material options offered, the gauge chamber can also be supplied with an optional machined radius to match the curvature of the vessel when required.

The 8800 Series Level Gauge features 90° connections for ease of installation. The Gauge is fitted with inline 1/4″ FNPT vent and drain connections. Because the vent and drain connections are inline, glass cleaning is easy. The centerline dimensional tolerance is 1/16″. This assures that the gauge will fit the mounting connection of the tank. The sight tube of the 8800 Series Level Gauge is totally protected. Three sides of the gauge are enclosed with a metal frame, while the face of the gauge is protected with a polycarbonate shield. This shield can be custom calibrated to read tank volume or any other calibration. Refer to the Product Specifications tab to see the assortment of standard shield options.

Safeguard gauge replaces tubular glass that is mounted between tubular gauge glass valves. The packing nut on the tubular valve tightens around the metal nozzles of the Safeguard gauge, not glass. Nozzles match the O.D. of 5/8″ glass or 3/4″ glass.

The Environmental Protection Gauge (EPG) is easy to install. It installs just like tubular glass and is designed to replace your existing tubular glass. It will eliminate glass breakage and stop costly spills. The metal end connection of the gauge inserts into the valve stuffing box thus eliminating two common points for glass breakage: Over-tightening of the glass packing Breakage of glass at the packing nuts from impact to the gauge

The 5700 Series Gauge provides a visual means for checking the contents of a bulk tank and a means for checking the injection rate of a chemical metering pump. The gauge is designed to operate in low to medium pressure applications up to 500 psig.
